Character LCD Displays for Elevators
This 128*64 graphic COB LCD module has an integrated 0107 and 0108 or compatible display controller. Since this graphic LCD is a transflective, positive-mode display, the backlight may be turned off when there is sufficient ambient light to read the display.
- Product Introduction
Product Details

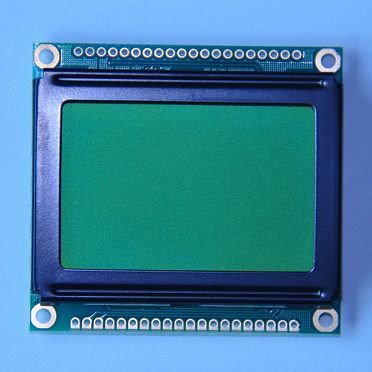

This 128*64 graphic COB LCD module has an integrated 0107 and 0108 or compatible display controller. Since this graphic LCD is a transflective, positive-mode display, the backlight may be turned off when there is sufficient ambient light to read the display. This display is well suited for Elevators, or any application where a lot of display in a very small area is needed.
Medical Specification
-Outline Dimension: 54(L) * 50(W) * Max 7.7(T)mm
-Viewing Area: 43.5(L) * 28.8( W)mm
-Dot size: 0.28(W) * 0.35(H)mm
-Dot pitch: 0.32(W) * 0.39(H)mm
Features
-Display Type: 128*64 dots
-LCD Type: STN, Positive (Y-G),Transflective
-Driver Condition: LCD Module: 1/128Duty, 1/9Bias
-Viewing Direction: 6 O’clock
-Backlight Type: SIDE Y-G
-Interface: 8-bit MPU interface
-Drive IC: 0107, 0108
Application
Consumer Electronic Products: Calculator, electronic bell, CD, VCD, MP3 player...
Communication Products: Cellular Phone, IC phone, Information Phone, Mobile Phone, Wireless Phone, PDA...
