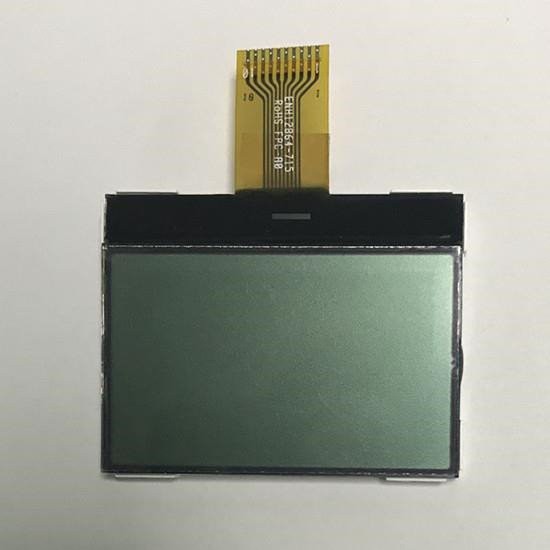

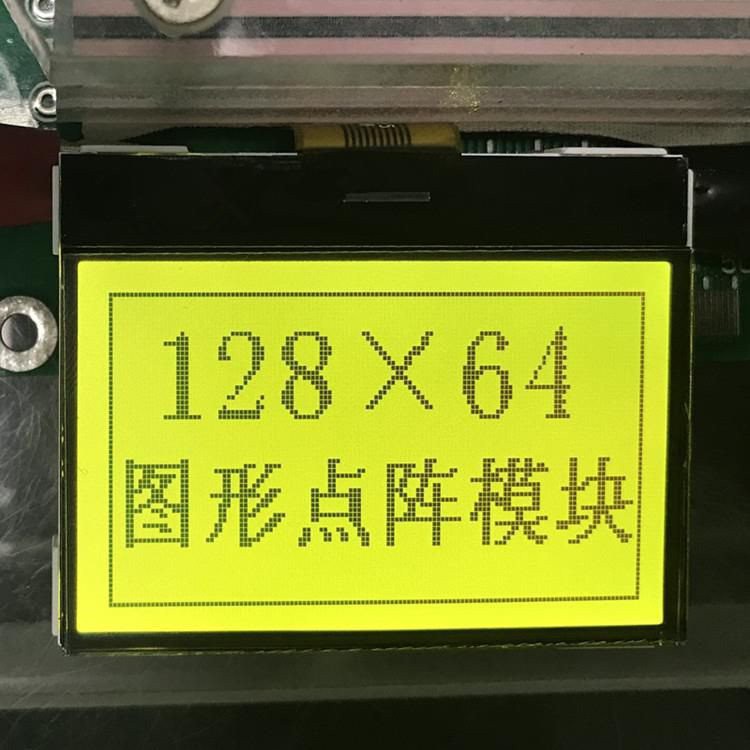

Graphic LCD Monochrome LCD Display Module
The view display area is 1.98 inches diagonally measured and the native resolution is 128*64. It can be used in any embedded systems, car, GPS, industrial device, security and hand-held equipment which requires display in high quality and long life time.
- Product Introduction
Product Details
The view display area is 1.98 inches diagonally measured and the native resolution is 128*64. It can be used in any embedded systems, car, GPS, industrial device, security and hand-held equipment which requires display in high quality and long life time.
LCD Ganeral Specifications
128x64 Graphic LCD Monochrome LCD Display Module | |
LCD Size | 1.98 inch (Diagonal) |
Resolution | 128x64 |
Display Mode | FSTN/Positive/ Transflective |
Module Size | 47.2x37.2 mm |
View Area | 43x26.5 mm |
Active Area | 39.02x22.70 mm |
View Angle | 12:00 |
Drive Method | 1/65Duty, 1/9 Bias |
Voltage | VLCD=9.5+/-0.2V, VDD=3.3V |
Diver IC | ST7567(COG) |
Connector | COG+FPC |
Operating Temperature | -20~+70 |
Storage Temperature | -30~+80 |
Note: Refer to Mechanical Drawing | |
FAQ
1. What is the MOQ ?
A: No MOQ for 7.0 inch TFT LCD screen module.
2. Can I get samples?
A: Yes, please give us sample orders.
3. How can you guarantee the quality mass production?
Our products quality follow ISO9000 standard system, stable design team, more than years experience of technology team and strictly quality control system guarantee the quality of our products.
4. When will you ship the items?
Samples (in stock) will be take 5-7 days after receiving your payment, but it can be negotiated.
