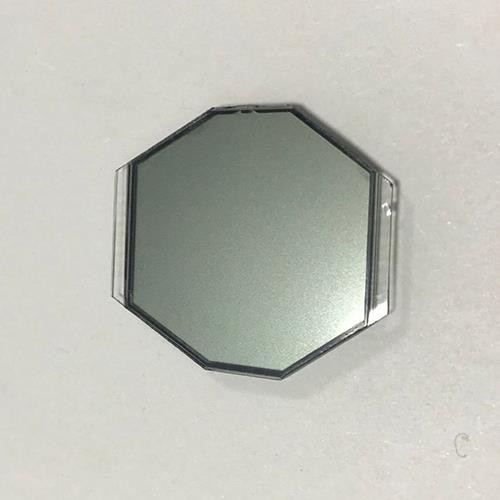

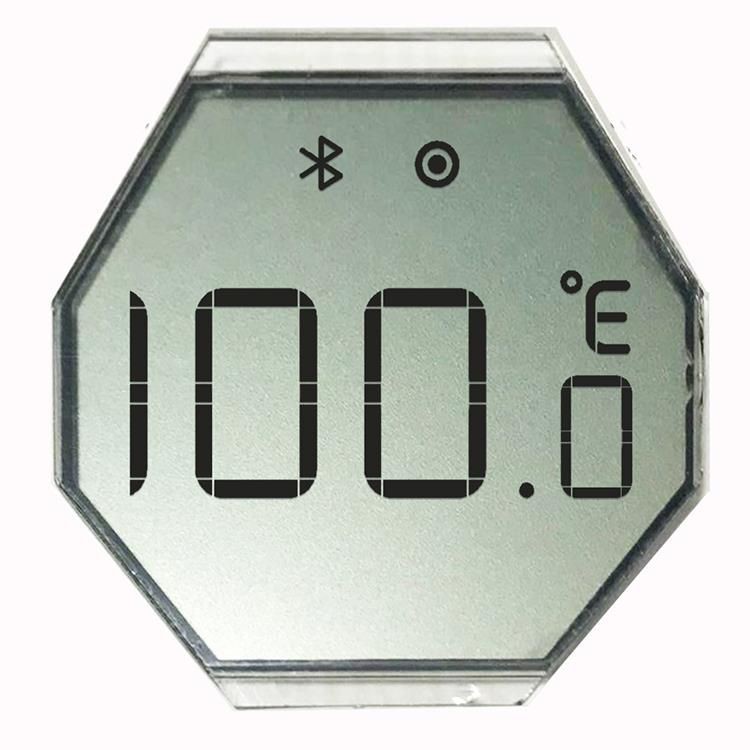

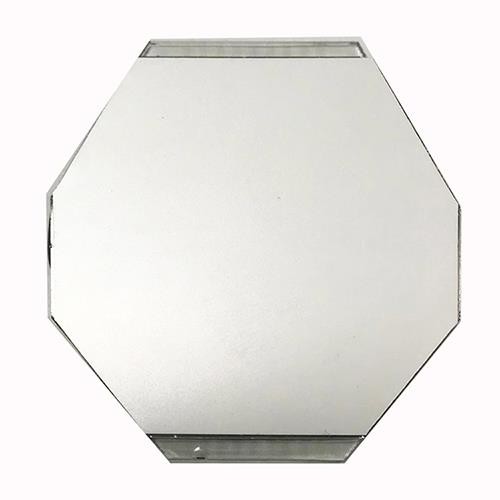

LCD Screen Module for Electronic Thermometer
The product solves your entire front panel requirements in one simple, proven device. The LCD screen module for Electronic thermometer can also reset your system as well as power it on and off using its ATX power supply control functionality.
- Product Introduction
Product Details
The product solves your entire front panel requirements in one simple, proven device.
The LCD screen module for Electronic thermometer can also reset your system as well as power it on and off using its ATX power supply control functionality. This way the LCD display can replace the ubiquitous power and reset switches while cleaning up the front panel design and simplifying your BOM and assembly.
Key Features
Polygon Reflective Segment LCD Display | |

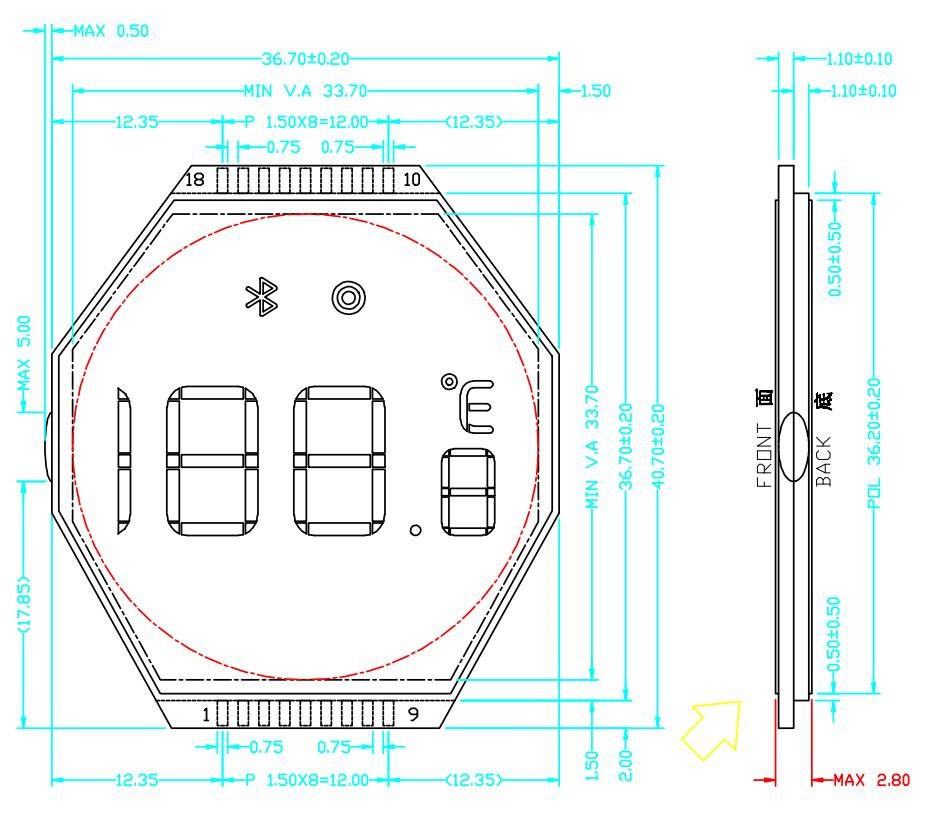

Outline Size | 36.7*40.7 mm |
Viewing Area | 33.7*33.7 mm |
VDD | 3.3V |
Connector | ZEBRA |
Backlight | 3WLED |
Display Mode | HTN, Reflective, Positive |
Viewing Angle | 6:00 |
Drive Method | 1/4 duty, 1/3 bias |
Top | 0℃ To + 50℃ |
Tst | -10℃ To + 60℃ |
RoHS Compliant | Yes |
Please contact us for datasheet and programming. | |
Shipment
DHL/UPS/FedEx/TNT/EMS
FAQ
--What should I do if I receive a wrong part?
First, please make sure the part you purchase is the one what you need. If you do receive the damaged part because of the mistake on our side, please contact with us, we will assist you to replace the correct one for you.
--How long can I get reply after sending inquiry?
We will reply to you within 24 hours.
