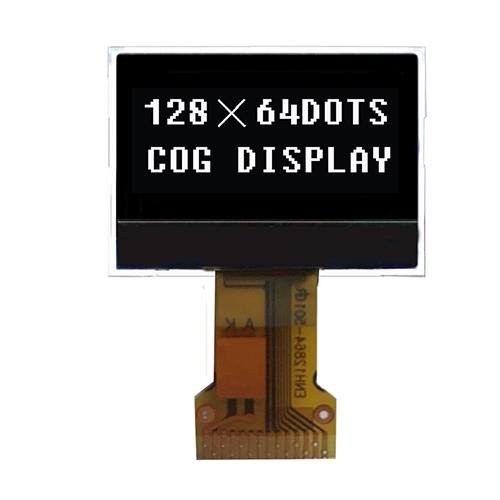

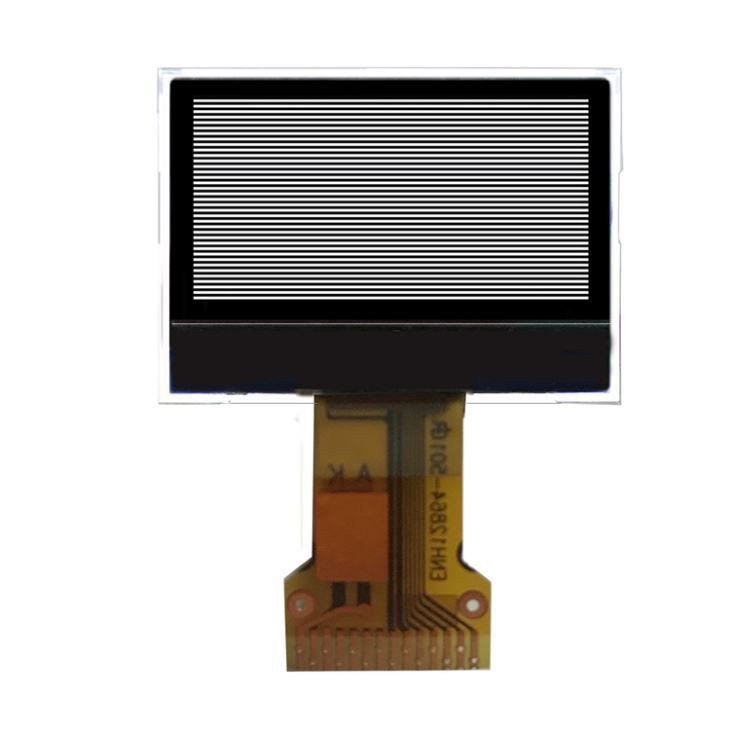

Monochrome LCD Display with Backlight
This 128x64 graphic LCD display module (ENH-DG128064-45) is a small, thin, and very low-power. This display is visible in most lighting situations, including normal office lighting up to bright sunlight.
- Product Introduction
Product Details
This 128x64 graphic LCD display module (ENH-DG128064-45) is a small, thin, and very low-power. This display is visible in most lighting situations, including normal office lighting up to bright sunlight. Since this LCD module has no backlight, there is no power used for the backlight, however, the display is not viewable in dark environments without an external light source. This display is well suited for low-power hand-held devices that are normally used in well-lit environments.
For reference only. For design purposes, please use the specifications in the datasheet.


Specifications
128x64 Monochrome LCD Display with Backlight | |
Resolution | 128*64 |
Outline Size | 30.18*21.40 mm |
Viewing Area | 26.58*14.86 mm |
Active Area | 25.58*14.06 mm |
VDD | 3.0V |
Driver IC | ST7567S |
Backlight | 3WLED |
Display Mode | DFSTN, Transmissive, Negative |
Viewing Angle | 6:00 |
Drive Method | 1/64 duty, 1/9 bias |
Top | -10℃ To + 60℃ |
Tst | -20℃ To + 70℃ |
RoHS Compliant | Yes |
Please contact us for datasheet and programming. | |
1. Display Mode: DFSTN/Transmissive/Negative.
2. Viewing Angle: 6 0'clock
3. Drive Method: 1/64 Duty 1/9 Bias, Vop= 8.7V, Vdd= 3.0V.
4. Top: -10°℃~+60°℃, Tst: -20°℃~+70°℃.
5. Connector: COG+FPC.
6. Drive IC: ST7567S
7. Backlight: 3PCS WHITE LEDS, If=45mA & Vf=3.0±0.10V
8. With" * " Mark Dimensions Are Important Dimensions.

FAQ
1. Q: Can I have a sample order?
A: Yes, We warmly welcome the sample for you to test the quality.
2. Q: Do you have any MOQ limit?
A: No, We don't.
3. Q: How long can I receive the sample?
A: Current sample needs 3 to 5 days, customized sample needs 14 to 20 Days.
