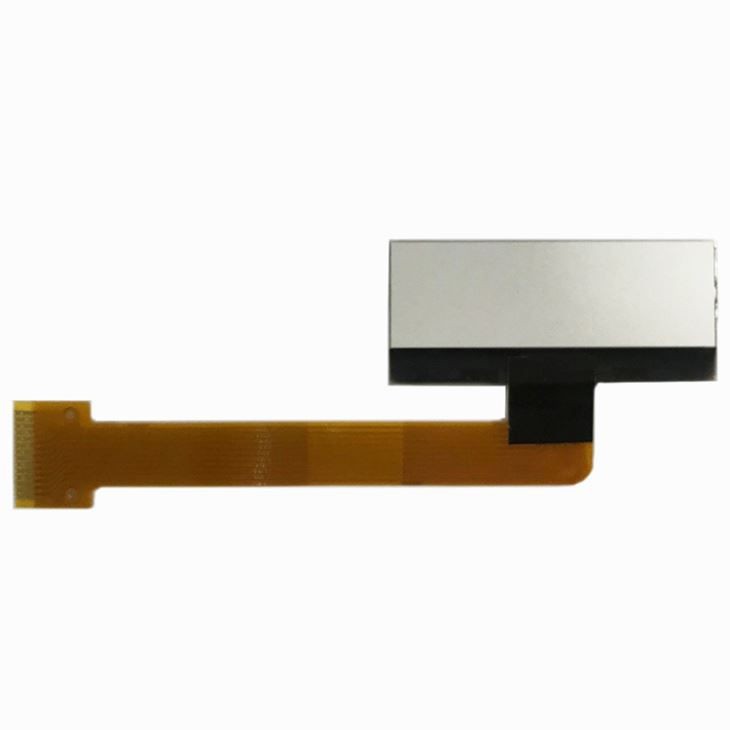

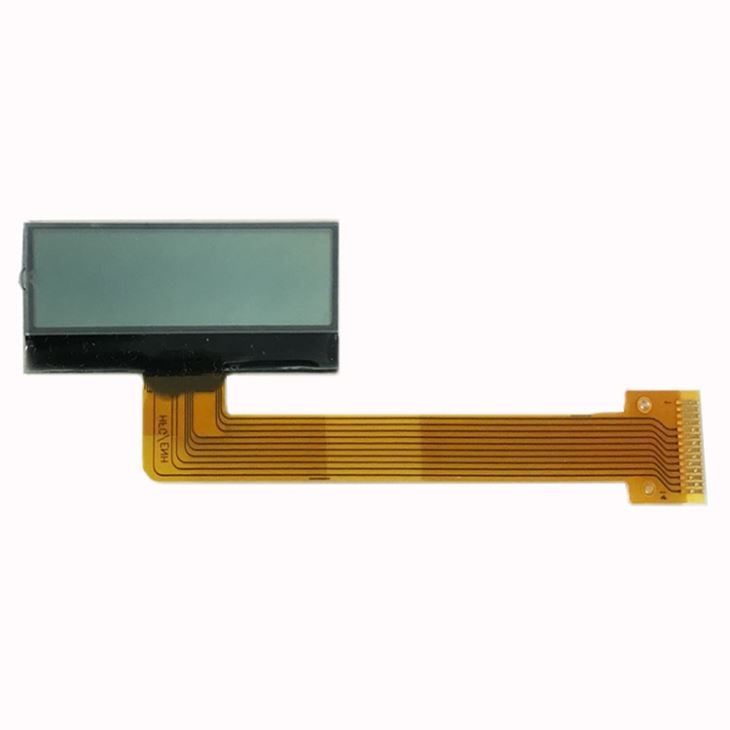

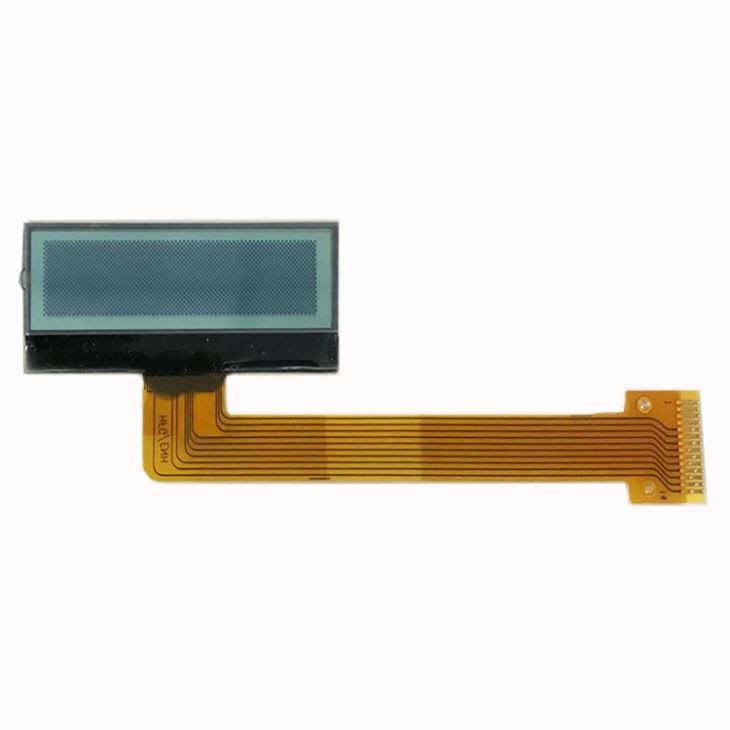

Small Size Graphic LCD Display Module
For all of our LCD displays, our design engineers have collected many lcd controller datasheets while vetting different display controllers and chipsets. We've added them here to make it easy for you to be able to work with these different controllers and chipsets.
- Product Introduction
Product Details
For all of our LCD displays, our design engineers have collected many lcd controller datasheets while vetting different display controllers and chipsets. We've added them here to make it easy for you to be able to work with these different controllers and chipsets. These LCD datasheets are not created or maintained by Crystalfontz; they are supplied simply "as is" for your use.
Specifications
Small Size Graphic LCD Display | |

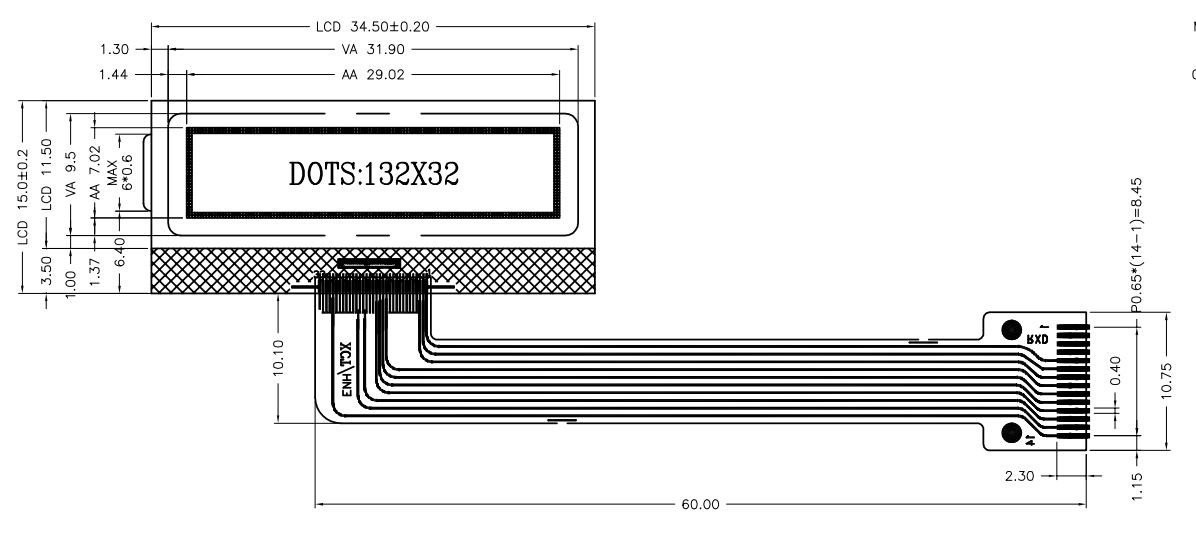

Outline Size | 34.5x15 mm |
View Area | 31.9x9.5 mm |
Active Area | 29.02x7.02 mm |
Display Resolution | 132x32 |
Display Mode | FSTN/Reflective/Positive |
View Angle | 12:00 |
Drive Method | 1/32 duty, 1/6 bias |
VOP | 6.2V |
VDD | 3.0V |
TOP | -10 - +60 |
TST | -20- +70 |
Connector | COG+FPC |
Driver IC | ST7567 (or other compatible IC) |
RoHS Compliant | Yes |
1. Display Mode: FSTN /Reflective / Positive.
2. Viewing Angle: 12 0'clock.
3. Drive Method:1/32 Duty 1/6 Bias, Vop=6.2V (customer sample), Vdd=3.0V.
4. Top: -10℃~+60℃, Tst: -20°℃~+70°℃.
5. Connector: COG+FPC.
6. Drive IC: ST7567 (or other compatible IC)
7. RoHS Compliant: Yes.
FAQ
1. Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.
2. How do you manage product quality?
A: The products are baked, aging, electrical measurement and other procedures for testing.
3. Is the product in stock? How long production cycle?
A: Some products are in stock, Small batch production for 1 weeks, Mass production for 2 weeks.
