LCD Screen Module for Commercial Electronic Scales

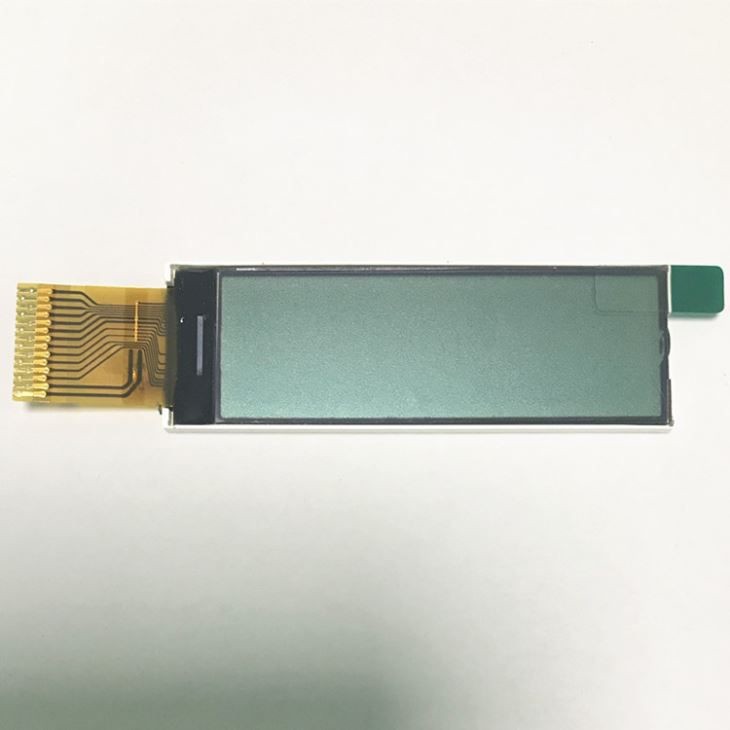

We designed this 160 x 48 graphic LCD display module so it fits on the face of 2.2-inch wide devicessuch as blade servers, disk drive carriers, and expansion cards.
- Product Introduction
Product Details
We designed this 160 x 48 graphic LCD display module so it fits on the face of 2.2-inch wide devicessuch as blade servers, disk drive carriers, and expansion cards.
This display uses two long-life white LEDs for its backlight. The forward voltage is 10v. For long life, we recommend driving the backlight at 12mA. The best way to drive the backlight is to use a constant current supply. Typically a switching supply designed to control current works well.
LCD Features
160x48 LCD Display | |
Resolution | 160x48 |
Outline Size | 62.7*20.8 mm |
Viewing Area | 52.7*17 mm |
Active Area | 50.48*14 mm |
Connector | COG+FPC |
Driver IC | UC1604C |
Backlight | 2PCS white LEDS |
Display Mode | FSTN, Transflective, Positive |
Viewing Angle | 6:00 |
Drive Method | 1/64 duty, 1/9 bias |
VOP | 10V |
VDD | 3.3V |
Top | -20℃ TO + 70℃ |
Tst | -30℃ To + 80℃ |
RoHS Compliant | Yes |
Please contact us for datasheet and programming | |
FAQ
1. Can you guarantee long-term supply?
Yes, more than 6 years of strong factory guarantee long-term supply.
2. Can you provide technical help?
Yes, we can provide technical support on that LCD you purchase.
3. Our MOQ?
Dear, we accept your order as 1 piece.
4. Are you manufacturer or trading company?
We are professional manufacturer in LCD display more than 6 years.
5. How can I pay for the order?
Our payment terms: T/T, Paypal, Bank Transfer, etc.
