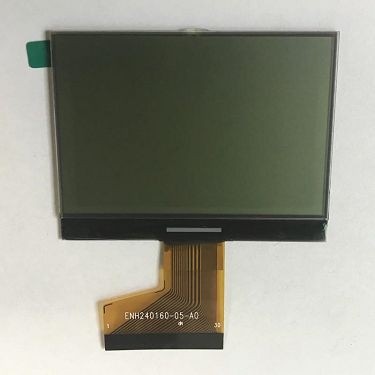

LCD Screen Module for Temperature Gun
LCD module for small intercom screen is add some dazzle to your project with this 240*160 resolution LCD module, it is a great choice when you need monochrome and sharp detail while using minimal front panel space. This 240x160 LCD display is built in with UC1611S IC.
- Product Introduction
Product Details
LCD module for small intercom screen is add some dazzle to your project with this 240*160 resolution LCD module, it is a great choice when you need monochrome and sharp detail while using minimal front panel space. This 240x160 LCD display is built in with UC1611S IC.
Key Features
Temperature gun 240x160 Graphic Monochrome LCD Display | |
Resolution | 240*160 |

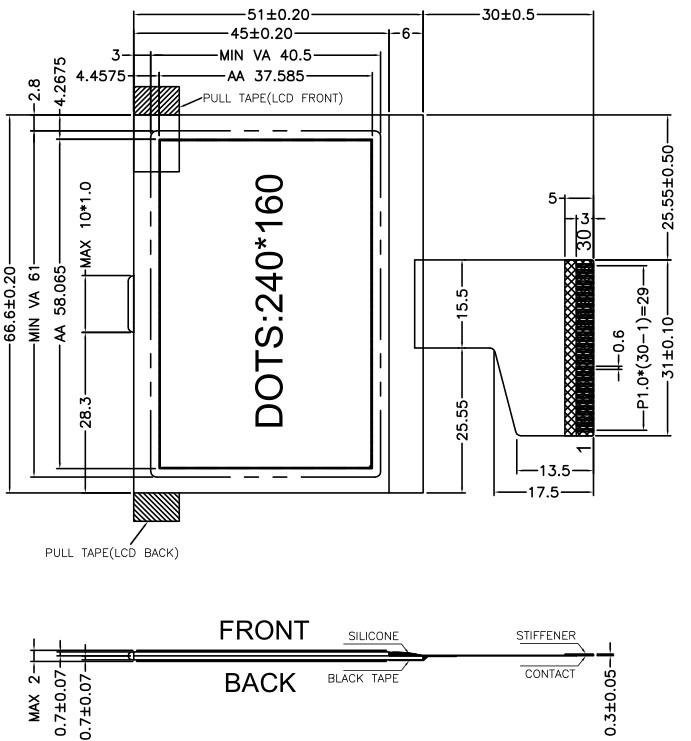

Outline Size | 51*66.6 mm |
Viewing Area | 40.5*61 mm |
Active Area | 37.585*58.065 mm |
VDD | 3.3V |
Driver IC | UC1611S |
Backlight | NO |
Display Mode | FSTN, Transflective, Positive |
Viewing Angle | 6:00 |
Drive Method | 1/16 duty, 1/12 bias |
Top | -10℃ To + 60℃ |
Tst | -20℃ To + 70℃ |
RoHS Compliant | Yes |
Please contact us for datasheet and programming. | |
Advantages
1. OEM is accepted.
2. Custom Various LCD display module Available.
3. Custom LED Backlight Color Available.
4. Various Temperature Range Available.
5. Any question or problem will be replied in 12 hours.
6. 24-hour hotline Available.
