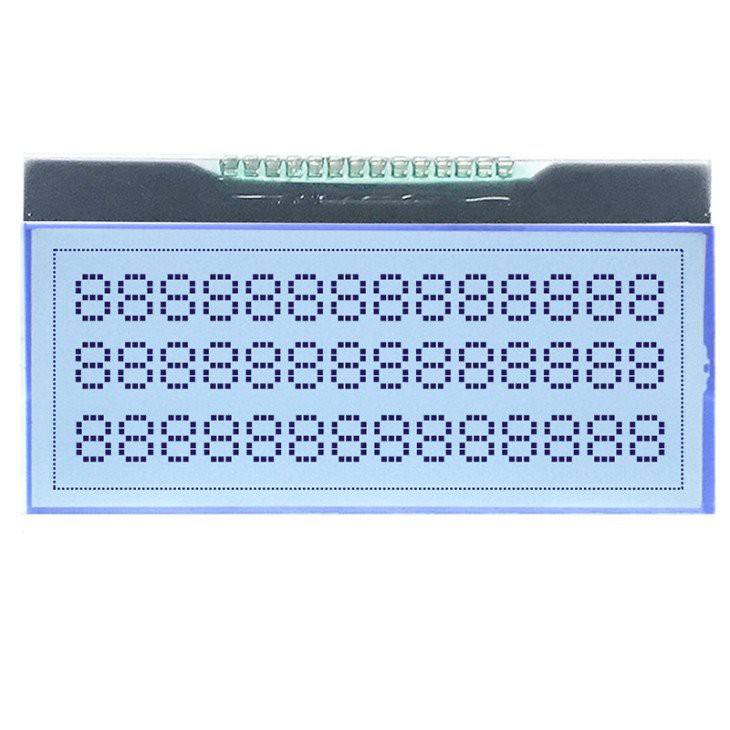

LCD Screen Module for Small Electronic Scale
Our LCD screen module for small electronic scale has a viewing area of 60 x 25 mm and is our standard 208 x 80 LCD displays. This LCD is available with several different backlight colors and is widely used in industries such as home automation and test and measurement equipment. The COG IC is the ST75263.
- Product Introduction
Product Details
Our LCD screen module for small electronic scale has a viewing area of 60 x 25 mm and is our standard 208 x 80 LCD displays. This LCD is available with several different backlight colors and is widely used in industries such as home automation and test and measurement equipment. The COG IC is the ST75263.
Key Features
208x80 Graphic Monochrome LCD Display | |
Resolution | 208 x 80 |

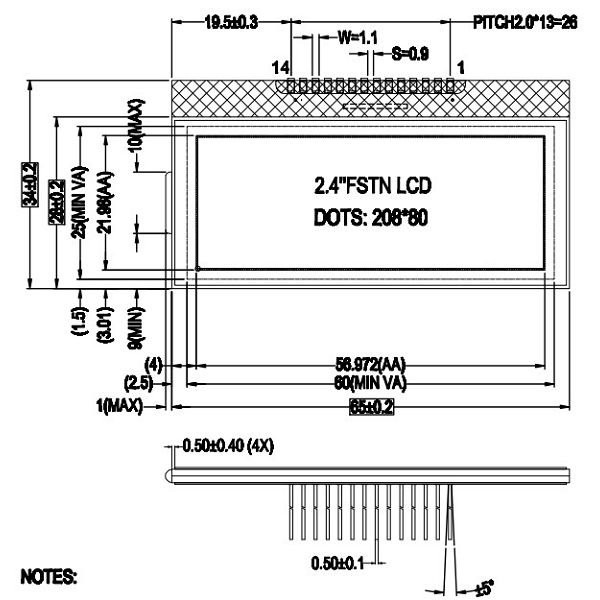

Outline Size | 65 x 34 mm |
Viewing Area | 60 x 25 mm |
Active Area | 56.972 x 21.98 mm |

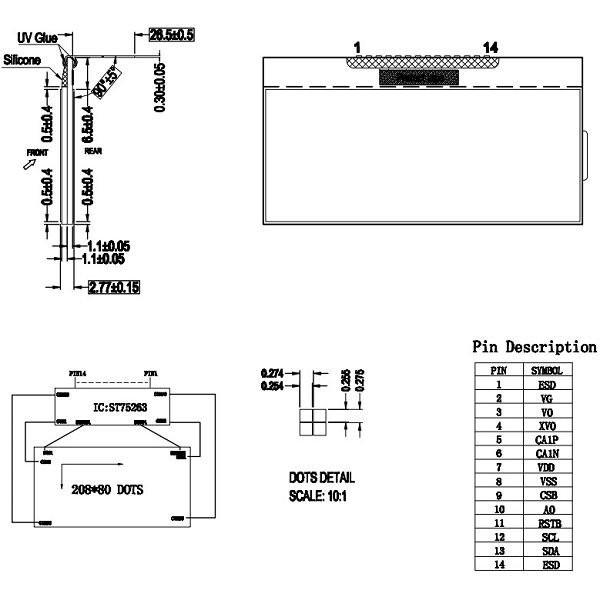

Driver IC | ST75263 |
Display Mode | FSTN, Transflective, Positive |
Viewing Angle | 6:00 |
Drive Method | 1/16 duty, 1/12 bias |
Top | -10℃ To + 60℃ |
Tst | -20℃ To + 70℃ |
RoHS Compliant | Yes |
Please contact us for datasheet and programming. | |
Advantages
1. OEM is accepted.
2. Custom Various LCD display module Available.
3. Custom LED Backlight Color Available.
4. Various Temperature Range Available.
5. Any question or problem will be replied in 12 hours.
6. 24-hour hotline Available.
